Parameter Watch

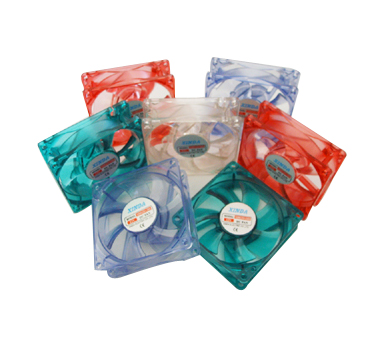

Model XD8025DC

Bearing Style

Voltage VDC

Current

AMP

Power Watts

Speed

RPM

Airflow

CFM

AirPressure

mmH2O

Noise dBA

Weight

P/N

XD8025D12US

S

12

0.26

3.12

3600

44.5

5.7

40.0

75g

XD8025D12HS

S

12

0.20

2.40

3200

40.3

5.0

37.0

XD8025D12MS

S

12

0.15

1.80

2500

30.3

3.0

30.0

XD8025D12LS

S

12

0.12

1.44

2200

26.5

2.3

25.9

XD8025D12DS

S

12

0.08

0.96

1900

21.3

1.4

20.0

XD8025D12UB

B

12

0.26

3.12

3700

45.0

6.0

40.4

XD8025D12HB

B

12

0.20

2.40

3400

41.3

5.2

38.0

XD8025D12MB

B

12

0.15

1.80

2600

31.3

3.5

31.4

XD8025D12LB

B

12

0.12

1.44

2300

27.5

2.6

27.4

XD8025D12DB

B

12

0.08

0.96

2000

23.3

1.5

22.0

XD8025D24US

S

24

0.15

3.60

3600

44.0

5.9

38.1

XD8025D24HS

S

24

0.11

2.64

3300

39.3

5.0

36.0

XD8025D24MS

S

24

0.09

2.16

2700

32.3

3.6

31.4

XD8025D24LS

S

24

0.07

1.68

2200

25.0

2.4

26.4

XD8025D24UB

B

24

0.15

3.60

3700

46.0

6.1

40.4

XD8025D24HB

B

24

0.11

2.64

3400

41.3

5.2

38.0

XD8025D24MB

B

24

0.09

2.16

2800

34.3

3.8

33.4

XD8025D24LB

B

24

0.07

1.68

2300

27.1

2.6

27.4

S: Sleeve bearing

B: Ball bearing.

Insulating aterial centigrade：10MΩ at 500VDC between lead and frame

Inner press： 500VAC/min ,current〈5mA

Working temperature：-20ºC～80ºC

Working temperature：20%～85%

Working pressure：Rated Voltage ±15%

Normal temperature working time: ball bearing hour's five,oil bearing hour's three.
