Parameter Watch

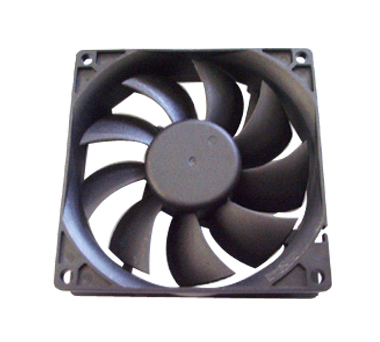

Model XD9225DC
Bearing Style
Voltage VDC
Current
AMP
Power Watts
Speed
RPM
Airflow
CFM
AirPressure
mmH2O
Noise dBA
Weight
P/N
XD9225D12HS
S
12
0.28
3.36
3000
62.0
3.9
38.4
87g
XD9225D12MS
0.21
2.52
2600
58.5
3.6
36.0
XD9225D12LS
0.16
1.92
2300
49.3
2.6
30.5
XD9225D12HB
B
3100
63.0
4.0
39.4
XD9225D12MB
2700
59.5
3.7
37.0
XD9225D12LB
2400
50.3
2.7
31.7
XD9225D24HS
24
3.84
XD9225D24MS
0.13
3.12
XD9225D24LS
0.08
XD9225D24HB
XD9225D24MB
XD9225D24LB
S: Sleeve bearing
B: Ball bearing
Insulating aterial centigrade:10MΩ at, , , 500VDC between lead and frame
Inner press: 500VAC/min ,current〈5mA
Working temperature:-20ºC~80ºC
Working temperature:20%~85%
Working pressure:Rated Voltage ±15%
Normal temperature working time: ball bearing hour's five,oil bearing hour's three.
Conversion Table of Airflow
m3/sec
m3/min
ft3/sec
2118
1
60
35.31
0.01666
0.5885
0.02832
1.69833
0.00047
Conversion Table of Air Pressure
inH2O
Pa=N/m
afm
0.03939
9.80665
0.00009
25.4
249
0.00246
0.10197
0.0040
0.00001
10332
407.1
101325
