Parameter Watch

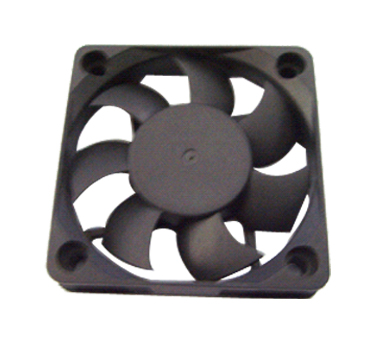

ModelXD5010DC
Bearing Style
Voltage VDC
Current
AMP
Power Watts
Speed
RPM
Airflow
CFM
AirPressure
mmH2O
Noise dBA
Weight
P/N
XD5010D05HS
S
5
0.22
1.10
5200
12.5
3.3
32.9
20g
XD5010D05MS
0.18
0.90
4300
10.0
2.4
30.3
XD5010D05HB
B
1.65
5500
13.5
3.5
33.5
XD5010D05MB
130
4600
10.7
2.6
30.9
XD5010D12HS
12
0.12
1.44
5600
13.9
3.7
XD5010D12MS
0.09
1.08
XD5010D12LS
0.06
0.72
3600
9.0
2.0
27.3
XD5010D12HB
6000
14.5
3.9
34.9
XD5010D12MB
5100
11.7
3.2
33.3
XD5010D12LB
9.7
XD5010D24MS
24
0.04
0.96
XD5010D24MB
5400
3.4
33.0
S: Sleeve bearing
B: Ball bearing
Insulating aterial centigrade:10MΩ at 500VDC between lead and frame&, lt;, /P>
Inner press: 500VAC/min ,current〈5mA
Working pressure:-20ºC~80ºC
Working temperature:20%~85%
Working pressure:Rated Voltage ±15%
Normal temperature working time: ball bearing hour's five,oil bearing hour's three.
Conversion Table of Airflow
m3/sec
m3/min
ft3/sec
2118
1
60
35.31
0.01666
0.5885
0.02832
1.69833
0.00047
Conversion Table of Air Pressure
inH2O
Pa=N/m
afm
0.03939
9.80665
0.00009
25.4
249
0.00246
0.10197
0.0040
0.00001
10332
407.1
101325
