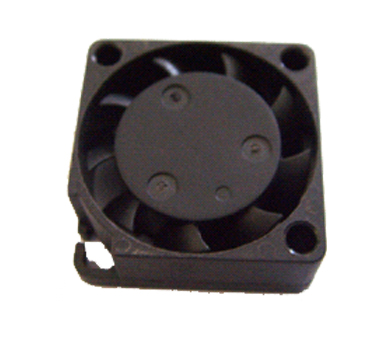

Model XD2510DC |
Bearing Style |
Voltage VDC |
Current
AMP |
Power Watts |
Speed
RPM |
Airflow
CFM |
AirPressure
mmH2O |
Noise dBA |
Weight |
|
P/N |
|
XD2510D05HS |
S |
5 |
0.11 |
0.55 |
9500 |
2.1 |
3.8 |
21.5 |
8g |
|
XD2510D05MS |
S |
5 |
0.90 |
0.45 |
8000 |
1.8 |
2.8 |
19.8 |
|
XD2510D05LS |
S |
5 |
0.70 |
0.35 |
6000 |
1.4 |
1.8 |
16.2 |
|
XD2510D05HB |
B |
5 |
0.11 |
0.55 |
1000 |
2.3 |
4.0 |
22.5 |
|
XD2510D05MB |
B |
5 |
0.90 |
0.45 |
8500 |
1.9 |
3.0 |
19.9 |
|
XD2510D05LB |
B |
5 |
0.70 |
0.35 |
6800 |
1.5 |
2.0 |
17.0 |
|
XD2510D12HS |
S |
12 |
0.09 |
1.08 |
9500 |
2.1 |
3.8 |
21.5 |
|
XD2510D12MS |
S |
12 |
0.07 |
0.84 |
8000 |
1.8 |
2.8 |
19.8 |
|
XD2510D12LS |
S |
12 |
0.06 |
0.72 |
6000 |
1.4 |
1.8 |
16.2 |
|
XD2510D12HB |
B |
12 |
0.09 |
1.08 |
1000 |
2.3 |
4.0 |
22.5 |
|
XD2510D12MB |
B |
12 |
0.07 |
0.84 |
8500 |
1.9 |
3.0 |
19.9 |
|
XD2510D12LS |
S |
12 |
0.06 |
0.72 |
6800 |
1.5 |
2.0 |
17.0 |
|
S: Sleeve bearing |
B: Ball bearing |
|
Insulating aterial centigrade：10MΩ at 500VDC between lead and frame, |
Inner press： 500VAC/min ,current〈5mA |
|
Working temperature：-20ºC～80ºC |
Working temperature：20%～85% |
|
Working pressure：Rated Voltage ±15% |
Normal temperature working time: ball bearing hour's five,oil bearing hour's three. |
|
|
|
Conversion Table of Airflow |
|
CFM |
m3/sec |
m3/min |
ft3/sec |
|
2118 |
1 |
60 |
35.31 |
|
35.31 |
0.01666 |
1 |
0.5885 |
|
60 |
0.02832 |
1.69833 |
1 |
|
1 |
0.00047 |
0.02832 |
0.01666 |
|
Conversion Table of Air Pressure |
|
mmH2O |
inH2O |
Pa=N/m |
afm |
|
1 |
0.03939 |
9.80665 |
0.00009 |
|
25.4 |
1 |
249 |
0.00246 |
|
0.10197 |
0.0040 |
1 |
0.00001 |
|
10332 |
407.1 |
101325 |
1 |
| |
