Parameter Watch

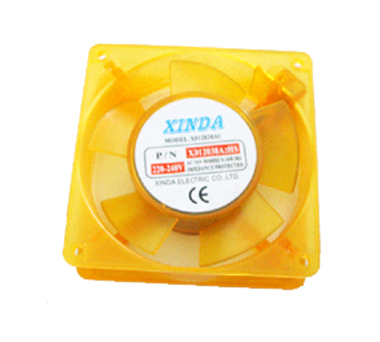

Model XD12038AC

Freq

Hz

Voltage

VAC

Bearing Style

Current

AMP

Power Watts

Speed

RPM

风量Airflow

CFM

风压Pressure

mmH2O

噪音Noise dBA

重量

Weight

P/N

XD12038A1HSL

50/60

110

S

0.24/0.21

26.4/23.1

2600/3000

75/90

6.3/7.3

44/46

550g

XD12038A1HBL

50/60

110

B

0.24/0.21

26.4/23.1

2600/3000

77/92

6.6/7.5

45/47

XD12038A2HSL

50/60

220

S

0.14/0.10

30.8/22.0

2600/3000

75/90

6.3/7.3

44/46

XD12038A2HBL

50/60

220

B

0.14/0.10

30.8/22.0

2600/3000

77/92

6.6/7.5

45/47

XD12038A3HSL

50/60

380

S

0.08/0.07

30.4/26.6

2600/3000

75/90

6.3/7.3

44/46

XD12038A3HBL

50/60

380

B

0.08/0.07

30.4/26.6

2600/3000

77/92

6.6/7.5

45/47

XD12038A1LSL

50/60

110

S

0.15/0.14

16.5/15.4

1800/1900

46/53

3.6/4.5

35/38

XD12038A1LBL

50/60

110

B

0.15/0.14

16.5/15.4

1850/2000

47/54

3.6/4.5

37/40

XD12038A2LSL

50/60

220

S

0.08/0.07

17.6/15.4

1800/1900

46/53

3.6/4.5

35/38

XD12038A2LBL

50/60

220

B

0.08/0.07

17.6/15.4

1850/2000

47/54

3.6/4.5

37/40

XD12038A3LSL

50/60

380

S

0.05/0.04

19.0/15.2

1800/1900

46/53

3.6/4.5

35/38

XD12038A3LBL

50/60

380

B

0.05/0.04

19.0/15.2

1850/2000

47/54

3.6/4.5

37/40

For the terminal connect version, change "L" in the Model to "T" .

Insulating aterial centigrade ：10MΩ at 500VDC between lead and frame

Inner press：1 min at 1500VAC/50-60HZ ,current〈5mA

Working temperature：-20ºC～80ºC

Working temperature：20%～85%

Working pressure：85V～125V for 110V and 190V～250V for 220V

Normal temperature working time: ball bearing hour's five,oil bearing hour's two.
