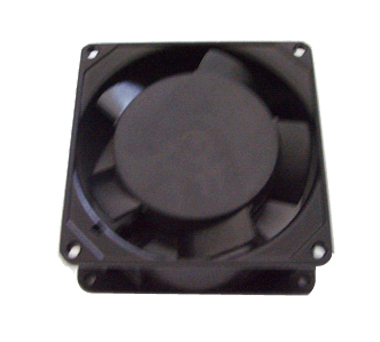

Model XD9238AC |
Freq
Hz |
Voltage
VAC |
Bearing Style |
Current
AMP |
Power Watts |
Speed
RPM |
Airflow
CFM |
Pressure
mmH2O |
Noise dBA |
Weight |
|
P/N |
|
XD9238A1HSL |
50/60 |
110 |
S |
0.15/0.13 |
16.5/14.3 |
2400/2800 |
44/54 |
3.6/5.3 |
36/40 |
360g |
|
XD9238A1HBL |
50/60 |
110 |
B |
0.15/0.13 |
16.5/14.3 |
2500/2900 |
45/55 |
3.7/5.5 |
37/41 |
|
XD9238A2HSL |
50/60 |
220 |
S |
0.07/0.06 |
15.4/13.2 |
2400/2800 |
44/54 |
3.6/5.3 |
36/40 |
|
XD9238A2HBL |
50/60 |
220 |
B |
0.07/0.06 |
15.4/13.2 |
2500/2900 |
45/55 |
3.7/5.5 |
37/41 |
|
XD9238A3HSL |
50/60 |
380 |
S |
0.04/0.03 |
15.2/11.4 |
2400/2800 |
44/54 |
3.6/5.3 |
36/40 |
|
XD9238A3HBL |
50/60 |
380 |
B |
0.04/0.03 |
15.2/11.4 |
2500/2900 |
45/55 |
3.7/5.5 |
37/41 |
|
S: Sleeve bearing, B: Ball bearing |
For the terminal connect version, change "L" in the Model to "T" |
|
Insulating aterial centigrade：10MΩ at 500VDC between lead and frame |
Inner press ：1 min at 1500VAC/50-60HZ ,current〈5mA |
|
Working temperature：-20ºC～80ºC |
Working humidity：20%～85% |
|
Working pressure：85V～125V for 110V and 190V～250V for 220V |
Normal temperature working time: ball bearing hour's five,oil bearing hour's three. |
|
|
|
Conversion Table of Airflow |
|
CFM |
m3/sec |
m3/min |
ft3/sec |
|
2118 |
1 |
60 |
35.31 |
|
35.31 |
0.01666 |
1 |
0.5885 |
|
60 |
0.02832 |
1.69833 |
1 |
|
1 |
0.00047 |
0.02832 |
0.01666 |
|
Conversion Table of Air Pressure |
|
mmH2O |
inH2O |
Pa=N/m |
afm |
|
1 |
0.03939 |
9.80665 |
0.00009 |
|
25.4 |
1 |
249 |
0.00246 |
|
0.10197 |
0.0040 |
1 |
0.00001 |
|
10332 |
407.1 |
101325 |
1 | | |
